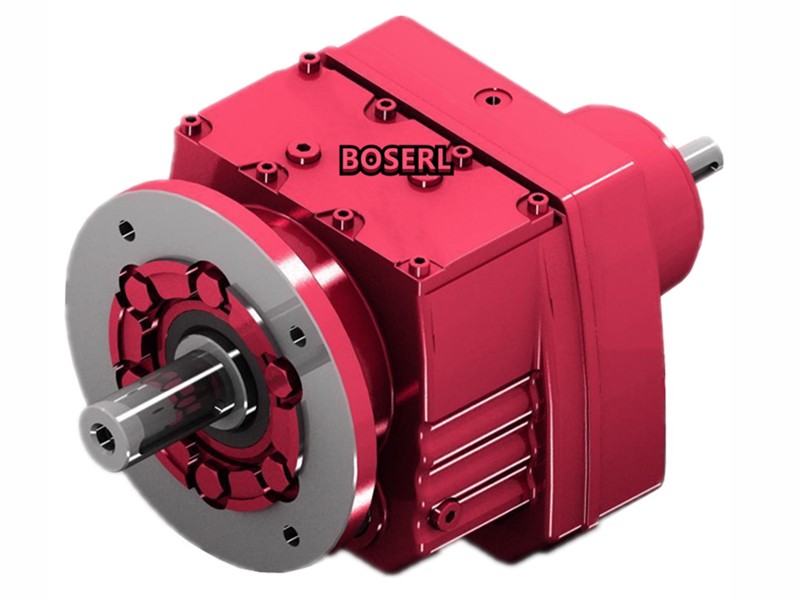

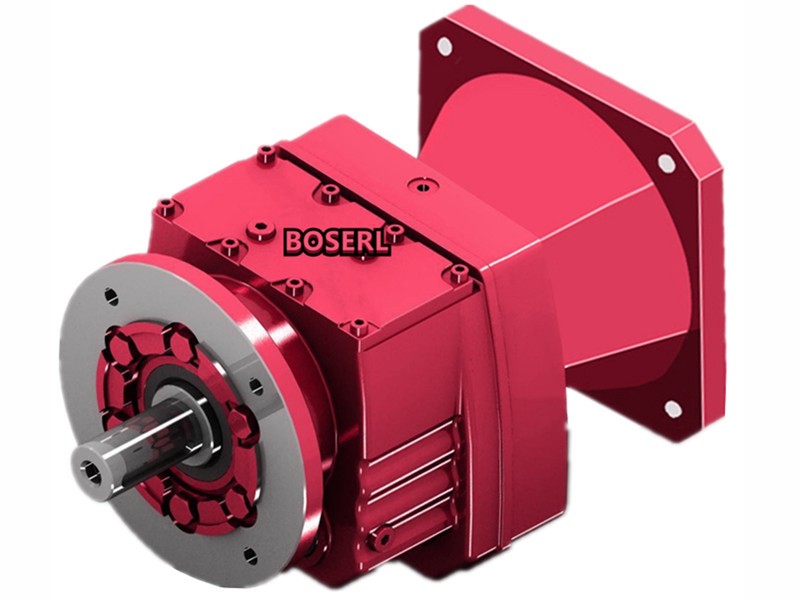

RF38減速機詳細信息
RF38減速機
訂購熱線：13360667204
RF38減速機傳動比計算：齒輪減速馬達
傳送帶參數：齒輪直徑85，傳送1.8噸，傳送一分鐘41米
41米÷（0.085齒輪直徑X3.14）=153.61轉每分鐘
1.8噸換算成N=18000N
18000×0.0425齒輪半徑×0.06摩擦系數=45.9N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍45.9×2=91.8N.m
電機轉數1400÷輸出轉數153.61=9.11比
91.8N.m輸出扭矩÷9.11比=10.07N.m電機扭矩
10.07N.m電機扭矩?fù)Q算成功率1.6KW左右
對應的RF38減速機選型參數：
型號：RF38-BEJ2.2KW
減速比：9.47
輸出轉數：151轉每分鐘
輸出扭矩：140N.m
安全系數：1.2
RF38減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機
RF38立式硬齒面斜齒輪減速機型號：
RF37系列減速機參數大全：同軸斜齒輪減速電機
RF37減速機配0.12KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y0.12KW | 0.12KW | 10.0rpm | 112N.m | 1.80 |
| RF37-Y0.12KW | 0.12KW | 11.0rpm | 103N.m | 1.95 |
| RF37-Y0.12KW | 0.12KW | 13.0rpm | 87N.m | 2.30 |
| RF37-Y0.12KW | 0.12KW | 15.0rpm | 75N.m | 2.60 |
| RF37-Y0.12KW | 0.12KW | 16.0rpm | 70N.m | 2.80 |
| RF37-Y0.12KW | 0.12KW | 19.0rpm | 61N.m | 3.30 |
RF37減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y0.18KW | 0.18KW | 9.80rpm | 176N.m | 1.15 |
| RF37-Y0.18KW | 0.18KW | 11.0rpm | 161N.m | 1.25 |
| RF37-Y0.18KW | 0.18KW | 13.0rpm | 137N.m | 1.45 |
| RF37-Y0.18KW | 0.18KW | 15.0rpm | 118N.m | 1.70 |
| RF37-Y0.18KW | 0.18KW | 16.0rpm | 110N.m | 1.80 |
| RF37-Y0.18KW | 0.18KW | 18.0rpm | 96N.m | 2.10 |
| RF37-Y0.18KW | 0.18KW | 19.0rpm | 90N.m | 2.20 |
| RF37-Y0.18KW | 0.18KW | 22.0rpm | 80N.m | 2.50 |
| RF37-Y0.18KW | 0.18KW | 24.0rpm | 73N.m | 2.80 |
| RF37-Y0.18KW | 0.18KW | 27.0rpm | 63N.m | 3.20 |
RF37減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y0.25KW | 0.25KW | 9.60rpm | 245N.m | 0.80 |
| RF37-Y0.25KW | 0.25KW | 11.0rpm | 225N.m | 0.90 |
| RF37-Y0.25KW | 0.25KW | 12.0rpm | 193N.m | 1.05 |
| RF37-Y0.25KW | 0.25KW | 14.0rpm | 167N.m | 1.20 |
| RF37-Y0.25KW | 0.25KW | 15.0rpm | 155N.m | 1.30 |
| RF37-Y0.25KW | 0.25KW | 18.0rpm | 136N.m | 1.45 |
| RF37-Y0.25KW | 0.25KW | 19.0rpm | 127N.m | 1.55 |
| RF37-Y0.25KW | 0.25KW | 21.0rpm | 112N.m | 1.80 |
| RF37-Y0.25KW | 0.25KW | 23.0rpm | 102N.m | 1.95 |
| RF37-Y0.25KW | 0.25KW | 27.0rpm | 88N.m | 2.30 |
| RF37-Y0.25KW | 0.25KW | 29.0rpm | 82N.m | 2.40 |
| RF37-Y0.25KW | 0.25KW | 33.0rpm | 72N.m | 2.80 |
| RF37-Y0.25KW | 0.25KW | 35.0rpm | 67N.m | 3.00 |
| RF37-Y0.25KW | 0.25KW | 40.0rpm | 60N.m | 3.40 |
RF37減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y0.37KW | 0.37KW | 15.0rpm | 230N.m | 0.85 |
| RF37-Y0.37KW | 0.37KW | 16.0rpm | 215N.m | 0.90 |
| R37F-Y0.37KW | 0.37KW | 19.0rpm | 189N.m | 1.05 |
| RF37-Y0.37KW | 0.37KW | 20.0rpm | 178N.m | 1.15 |
| RF37-Y0.37KW | 0.37KW | 23.0rpm | 157N.m | 1.30 |
| RF37-Y0.37KW | 0.37KW | 25.0rpm | 143N.m | 1.40 |
| RF37-Y0.37KW | 0.37KW | 29.0rpm | 123N.m | 1.60 |
| RF37-Y0.37KW | 0.37KW | 31.0rpm | 115N.m | 1.75 |
| RF37-Y0.37KW | 0.37KW | 35.0rpm | 100N.m | 2.00 |
| RF37-Y0.37KW | 0.37KW | 38.0rpm | 94N.m | 2.10 |
| RF37-Y0.37KW | 0.37KW | 43.0rpm | 83N.m | 2.40 |
| RF37-Y0.37KW | 0.37KW | 48.0rpm | 74N.m | 2.70 |
| RF37-Y0.37KW | 0.37KW | 57.0rpm | 62N.m | 3.20 |
| RF37-Y0.37KW | 0.37KW | 49.0rpm | 72N.m | 2.80 |
| RF37-Y0.37KW | 0.37KW | 53.0rpm | 67N.m | 2.80 |
| RF37-Y0.37KW | 0.37KW | 62.0rpm | 57N.m | 3.50 |
| RF37-Y0.37KW | 0.37KW | 71.0rpm | 49N.m | 4.00 |
| RF37-Y0.37KW | 0.37KW | 76.0rpm | 46N.m | 4.30 |
| RF37-Y0.37KW | 0.37KW | 88.0rpm | 40N.m | 5.00 |
| RF37-Y0.37KW | 0.37KW | 104rpm | 34N.m | 5.60 |
| RF37-Y0.37KW | 0.37KW | 117rpm | 30N.m | 6.00 |
RF37減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y0.55KW | 0.55KW | 23.0rpm | 230N.m | 0.85 |
| RF37-Y0.55KW | 0.55KW | 25.0rpm | 210N.m | 0.95 |
| RF37-Y0.55KW | 0.55KW | 29.0rpm | 183N.m | 1.10 |
| RF37-Y0.55KW | 0.55KW | 31.0rpm | 171N.m | 1.15 |
| RF37-Y0.55KW | 0.55KW | 35.0rpm | 149N.m | 1.35 |
| RF37-Y0.55KW | 0.55KW | 38.0rpm | 140N.m | 1.45 |
| RF37-Y0.55KW | 0.55KW | 43.0rpm | 123N.m | 1.60 |
| RF37-Y0.55KW | 0.55KW | 48.0rpm | 109N.m | 1.85 |
| RF37-Y0.55KW | 0.55KW | 57.0rpm | 93N.m | 2.20 |
| RF37-Y0.55KW | 0.55KW | 62.0rpm | 85N.m | 2.40 |
| RF37-Y0.55KW | 0.55KW | 71.0rpm | 74N.m | 2.70 |
| RF37-Y0.55KW | 0.55KW | 76.0rpm | 69N.m | 2.90 |
| RF37-Y0.55KW | 0.55KW | 88.0rpm | 59N.m | 3.40 |
| RF37-Y0.55KW | 0.55KW | 104rpm | 50N.m | 3.80 |
| RF37-Y0.55KW | 0.55KW | 117rpm | 45N.m | 4.10 |
RF37減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y0.75KW | 0.75KW | 30.0rpm | 240N.m | 0.85 |
| RF37-Y0.75KW | 0.75KW | 32.0rpm | 220N.m | 0.90 |
| RF37-Y0.75KW | 0.75KW | 37.0rpm | 196N.m | 1.00 |
| RF37-Y0.75KW | 0.75KW | 39.0rpm | 183N.m | 1.10 |
| RF37-Y0.75KW | 0.75KW | 44.0rpm | 162N.m | 1.25 |
| RF37-Y0.75KW | 0.75KW | 50.0rpm | 143N.m | 1.40 |
| RF37-Y0.75KW | 0.75KW | 59.0rpm | 122N.m | 1.65 |
| RF37-Y0.75KW | 0.75KW | 64.0rpm | 111N.m | 1.80 |
| RF37-Y0.75KW | 0.75KW | 74.0rpm | 96N.m | 2.10 |
| RF37-Y0.75KW | 0.75KW | 80.0rpm | 90N.m | 2.20 |
| RF37-Y0.75KW | 0.75KW | 92.0rpm | 78N.m | 2.60 |
| RF37-Y0.75KW | 0.75KW | 108rpm | 66N.m | 2.90 |
| RF37-Y0.75KW | 0.75KW | 121rpm | 59N.m | 3.10 |
| RF37-Y0.75KW | 0.75KW | 142rpm | 50N.m | 3.40 |
| RF37-Y0.75KW | 0.75KW | 152rpm | 47N.m | 3.50 |
RF37減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y1.1KW | 1.1KW | 44.0rpm | 235N.m | 0.85 |
| RF37-Y1.1KW | 1.1KW | 49.0rpm | 210N.m | 0.95 |
| RF37-Y1.1KW | 1.1KW | 58.0rpm | 181N.m | 1.10 |
| RF37-Y1.1KW | 1.1KW | 74.0rpm | 143N.m | 1.40 |
| RF37-Y1.1KW | 1.1KW | 79.0rpm | 134N.m | 1.50 |
| RF37-Y1.1KW | 1.1KW | 91.0rpm | 115N.m | 1.75 |
| RF37-Y1.1KW | 1.1KW | 107rpm | 98N.m | 1.95 |
| RF37-Y1.1KW | 1.1KW | 120rpm | 88N.m | 2.10 |
| RF37-Y1.1KW | 1.1KW | 140rpm | 75N.m | 2.30 |
| RF37-Y1.1KW | 1.1KW | 150rpm | 70N.m | 2.40 |
| RF37-Y1.1KW | 1.1KW | 178rpm | 59N.m | 2.60 |
| RF37-Y1.1KW | 1.1KW | 213rpm | 49N.m | 2.90 |
| RF37-Y1.1KW | 1.1KW | 251rpm | 42N.m | 3.40 |
| RF37-Y1.1KW | 1.1KW | 281rpm | 37N.m | 3.60 |
RF37減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y1.5KW | 1.5KW | 74.0rpm | 193N.m | 1.05 |
| RF37-Y1.5KW | 1.5KW | 79.0rpm | 181N.m | 1.10 |
| RF37-Y1.5KW | 1.5KW | 92.0rpm | 156N.m | 1.30 |
| RF37-Y1.5KW | 1.5KW | 108rpm | 133N.m | 1.45 |
| RF37-Y1.5KW | 1.5KW | 121rpm | 118N.m | 1.55 |
| RF37-Y1.5KW | 1.5KW | 141rpm | 101N.m | 1.70 |
| RF37-Y1.5KW | 1.5KW | 151rpm | 95N.m | 1.75 |
| RF37-Y1.5KW | 1.5KW | 179rpm | 80N.m | 1.95 |
| RF37-Y1.5KW | 1.5KW | 214rpm | 67N.m | 2.20 |
| RF37-Y1.5KW | 1.5KW | 252rpm | 57N.m | 2.50 |
| RF37-Y1.5KW | 1.5KW | 283rpm | 51N.m | 2.70 |
| RF37-Y1.5KW | 1.5KW | 331rpm | 43N.m | 2.90 |
| RF37-Y1.5KW | 1.5KW | 353rpm | 40N.m | 3.00 |
| RF37-Y1.5KW | 1.5KW | 419rpm | 34N.m | 3.30 |
RF37減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y2.2KW | 2.2KW | 91.0rpm | 230N.m | 0.85 |
| RF37-Y2.2KW | 2.2KW | 108rpm | 195N.m | 0.95 |
| RF37-Y2.2KW | 2.2KW | 120rpm | 174N.m | 1.05 |
| RF37-Y2.2KW | 2.2KW | 141rpm | 149N.m | 1.15 |
| RF37-Y2.2KW | 2.2KW | 151rpm | 140N.m | 1.20 |
| RF37-Y2.2KW | 2.2KW | 179rpm | 118N.m | 1.35 |
| RF37-Y2.2KW | 2.2KW | 214rpm | 98N.m | 1.45 |
| RF37-Y2.2KW | 2.2KW | 252rpm | 84N.m | 1.70 |
| RF37-Y2.2KW | 2.2KW | 282rpm | 75N.m | 1.80 |
| RF37-Y2.2KW | 2.2KW | 330rpm | 64N.m | 2.00 |
| RF37-Y2.2KW | 2.2KW | 352rpm | 60N.m | 2.00 |
| RF37-Y2.2KW | 2.2KW | 418rpm | 50N.m | 2.20 |
RF37減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF37-Y3KW | 3KW | 144rpm | 199N.m | 0.85 |
| RF37-Y3KW | 3KW | 154rpm | 186N.m | 0.90 |
| RF37-Y3KW | 3KW | 182rpm | 157N.m | 1.00 |
| RF37-Y3KW | 3KW | 218rpm | 131N.m | 1.10 |
| RF37-Y3KW | 3KW | 257rpm | 112N.m | 1.25 |
| RF37-Y3KW | 3KW | 288rpm | 100N.m | 1.35 |
| RF37-Y3KW | 3KW | 337rpm | 85N.m | 1.50 |
| RF37-Y3KW | 3KW | 360rpm | 80N.m | 1.55 |
| RF37-Y3KW | 3KW | 427rpm | 67N.m | 1.65 |
RF38減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R38減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF38減速機 RF37立式硬齒面斜齒輪減速機 RF37系列減速機 RF37減速機傳動比 RF37減速機選型參數 RF37減速機CAD三維圖
