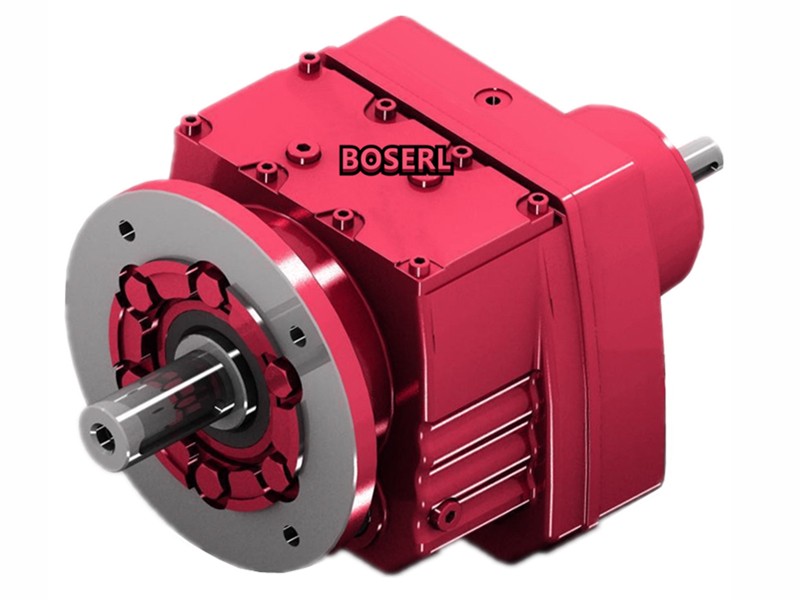

RF28減速電機詳細信息
RF28減速電機
訂購熱線：13360667204
RF28減速電機功率計算公式：齒輪減速馬達
電軌車參數：鏈輪直徑65，帶動0.2噸，每分鐘運行46米
46米÷（0.065鏈輪直徑×3.14）=225.4轉每分鐘
0.2噸換算成N=2000N
2000×0.0325鏈輪半徑×0.3橡膠輪水泥路的摩擦系數=19.5N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍19.5×2=39N.m
電機轉數1400÷輸出轉數225.4=6.21比
39N.m輸出扭矩÷6.21比=6.28N.m電機扭矩
6.28N.m電機扭矩?fù)Q算成功率1KW左右
對應的RF28減速機型號參數：
型號：RF28-BEJ1.1KW
減速比：6.59
輸出轉數：215轉每分鐘
輸出扭矩：49N.m
安全系數：2.2
RF28減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機
RF28斜齒輪硬齒面減速機型號：
RF28減速電機型號參數：同軸斜齒輪減速電機
RF28減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y0.12KW | 135.09 | 0.12KW | 11kg | 4310N |
| RF28-Y0.12KW | 123.91 | 0.12KW | 11kg | 4340N |
| RF28-Y0.12KW | 105.49 | 0.12KW | 11kg | 4390N |
| RF28-Y0.12KW | 90.96 | 0.12KW | 11kg | 4420N |
| RF28-Y0.12KW | 84.78 | 0.12KW | 11kg | 4440N |
| RF28-Y0.12KW | 74.11 | 0.12KW | 11kg | 4460N |
| RF28-Y0.12KW | 69.47 | 0.12KW | 11kg | 4460N |
| RF28-Y0.12KW | 61.30 | 0.12KW | 11kg | 4400N |
| RF28-Y0.12KW | 55.87 | 0.12KW | 11kg | 4280N |
| RF28-Y0.12KW | 48.17 | 0.12KW | 11kg | 4090N |
| RF28-Y0.12KW | 44.90 | 0.12KW | 11kg | 4000N |
RF28減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y0.18KW | 123.91 | 0.18KW | 11.5kg | 4070N |
| RF28-Y0.18KW | 105.49 | 0.18KW | 11.5kg | 4200N |
| RF28-Y0.18KW | 90.96 | 0.18KW | 11.5kg | 4280N |
| RF28-Y0.18KW | 84.78 | 0.18KW | 11.5kg | 4320N |
| RF28-Y0.18KW | 74.11 | 0.18KW | 11.5kg | 4360N |
| RF28-Y0.18KW | 69.47 | 0.18KW | 11.5kg | 4380N |
| RF28-Y0.18KW | 61.30 | 0.18KW | 11.5kg | 4320N |
| RF28-Y0.18KW | 55.87 | 0.18KW | 11.5kg | 4210N |
| RF28-Y0.18KW | 48.17 | 0.18KW | 11.5kg | 4040N |
| RF28-Y0.18KW | 44.90 | 0.18KW | 11.5kg | 3960N |
| RF28-Y0.18KW | 39.25 | 0.18KW | 11.5kg | 3810N |
| RF28-Y0.18KW | 36.79 | 0.18KW | 11.5kg | 3740N |
| RF28-Y0.18KW | 32.47 | 0.18KW | 11.5kg | 3610N |
| RF28-Y0.18KW | 28.78 | 0.18KW | 11.5kg | 3480N |
| RF28-Y0.18KW | 24.47 | 0.18KW | 11.5kg | 3310N |
| RF28-Y0.18KW | 28.37 | 0.18KW | 11.5kg | 3460N |
| RF28-Y0.18KW | 26.09 | 0.18KW | 11.5kg | 3380N |
| RF28-Y0.18KW | 22.32 | 0.18KW | 11.5kg | 3220N |
| RF28-Y0.18KW | 19.35 | 0.18KW | 11.5kg | 3090N |
| RF28-Y0.18KW | 18.08 | 0.18KW | 11.5kg | 3020N |
| RF28-Y0.18KW | 15.63 | 0.18KW | 11.5kg | 2890N |
| RF28-Y0.18KW | 13.28 | 0.18KW | 11.5kg | 2750N |
RF28減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y0.25KW | 84.78 | 0.25KW | 15.5kg | 4100N |
| RF28-Y0.25KW | 74.11 | 0.25KW | 15.5kg | 4210N |
| RF28-Y0.25KW | 69.47 | 0.25KW | 15.5kg | 4240N |
| RF28-Y0.25KW | 61.30 | 0.25KW | 15.5kg | 4180N |
| RF28-Y0.25KW | 55.87 | 0.25KW | 15.5kg | 4090N |
| RF28-Y0.25KW | 48.17 | 0.25KW | 15.5kg | 3940N |
| RF28-Y0.25KW | 44.90 | 0.25KW | 15.5kg | 3870N |
| RF28-Y0.25KW | 39.25 | 0.25KW | 15.5kg | 3730N |
| RF28-Y0.25KW | 36.79 | 0.25KW | 15.5kg | 3660N |
| RF28-Y0.25KW | 32.47 | 0.25KW | 15.5kg | 3540N |
| RF28-Y0.25KW | 28.78 | 0.25KW | 15.5kg | 3420N |
| RF28-Y0.25KW | 24.47 | 0.25KW | 15.5kg | 3270N |
| RF28-Y0.25KW | 28.37 | 0.25KW | 15.5kg | 3410N |
| RF28-Y0.25KW | 26.09 | 0.25KW | 15.5kg | 3330N |
| RF28-Y0.25KW | 22.32 | 0.25KW | 15.5kg | 3180N |
| RF28-Y0.25KW | 19.35 | 0.25KW | 15.5kg | 3050N |
| RF28-Y0.25KW | 18.08 | 0.25KW | 15.5kg | 2990N |
| RF28-Y0.25KW | 15.63 | 0.25KW | 15.5kg | 2860N |
| RF28-Y0.25KW | 13.28 | 0.25KW | 15.5kg | 2730N |
| RF28-Y0.25KW | 11.86 | 0.25KW | 15.5kg | 2630N |
| RF28-Y0.25KW | 10.13 | 0.25KW | 15.5kg | 2510N |
| RF28-Y0.25KW | 9.41 | 0.25KW | 15.5kg | 2440N |
| RF28-Y0.25KW | 8.16 | 0.25KW | 15.5kg | 2330N |
| RF28-Y0.25KW | 7.63 | 0.25KW | 15.5kg | 2280N |
| RF28-Y0.25KW | 6.59 | 0.25KW | 15.5kg | 2180N |
| RF28-Y0.25KW | 5.60 | 0.25KW | 15.5kg | 2080N |
| RF28-Y0.25KW | 5.00 | 0.25KW | 15.5kg | 2000N |
| RF28-Y0.25KW | 4.27 | 0.25KW | 15.5kg | 1900N |
| RF28-Y0.25KW | 4.00 | 0.25KW | 15.5kg | 1870N |
| RF28-Y0.25KW | 3.37 | 0.25KW | 15.5kg | 1770N |
RF28減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y0.37KW | 61.30 | 0.37KW | 16kg | 3870N |
| RF28-Y0.37KW | 55.87 | 0.37KW | 16kg | 3800N |
| RF28-Y0.37KW | 48.17 | 0.37KW | 16kg | 3680N |
| RF28-Y0.37KW | 44.90 | 0.37KW | 16kg | 3620N |
| RF28-Y0.37KW | 39.25 | 0.37KW | 16kg | 3510N |
| RF28-Y0.37KW | 36.79 | 0.37KW | 16kg | 3460N |
| RF28-Y0.37KW | 32.47 | 0.37KW | 16kg | 3350N |
| RF28-Y0.37KW | 28.78 | 0.37KW | 16kg | 3250N |
| RF28-Y0.37KW | 24.47 | 0.37KW | 16kg | 3110N |
| RF28-Y0.37KW | 28.37 | 0.37KW | 16kg | 3240N |
| RF28-Y0.37KW | 26.09 | 0.37KW | 16kg | 3170N |
| RF28-Y0.37KW | 22.32 | 0.37KW | 16kg | 3040N |
| RF28-Y0.37KW | 19.35 | 0.37KW | 16kg | 2920N |
| RF28-Y0.37KW | 18.08 | 0.37KW | 16kg | 2860N |
| RF28-Y0.37KW | 15.63 | 0.37KW | 16kg | 2750N |
| RF28-Y0.37KW | 13.28 | 0.37KW | 16kg | 2620N |
RF28減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y0.55KW | 39.25 | 0.55KW | 20.5kg | 3270N |
| RF28-Y0.55KW | 36.79 | 0.55KW | 20.5kg | 3230N |
| RF28-Y0.55KW | 32.47 | 0.55KW | 20.5kg | 3150N |
| RF28-Y0.55KW | 28.78 | 0.55KW | 20.5kg | 3070N |
| RF28-Y0.55KW | 24.47 | 0.55KW | 20.5kg | 2960N |
| RF28-Y0.55KW | 22.32 | 0.55KW | 20.5kg | 2900N |
| RF28-Y0.55KW | 19.35 | 0.55KW | 20.5kg | 2800N |
| RF28-Y0.55KW | 18.08 | 0.55KW | 20.5kg | 2750N |
| RF28-Y0.55KW | 15.63 | 0.55KW | 20.5kg | 2650N |
| RF28-Y0.55KW | 13.28 | 0.55KW | 20.5kg | 2540N |
| RF28-Y0.55KW | 11.86 | 0.55KW | 20.5kg | 2460N |
| RF28-Y0.55KW | 10.13 | 0.55KW | 20.5kg | 2360N |
| RF28-Y0.55KW | 9.41 | 0.55KW | 20.5kg | 2280N |
| RF28-Y0.55KW | 8.16 | 0.55KW | 20.5kg | 2190N |
| RF28-Y0.55KW | 7.63 | 0.55KW | 20.5kg | 2150N |
| RF28-Y0.55KW | 6.59 | 0.55KW | 20.5kg | 2070N |
| RF28-Y0.55KW | 5.60 | 0.55KW | 20.5kg | 1970N |
| RF28-Y0.55KW | 5.00 | 0.55KW | 20.5kg | 1910N |
| RF28-Y0.55KW | 4.27 | 0.55KW | 20.5kg | 1820N |
| RF28-Y0.55KW | 4.00 | 0.55KW | 20.5kg | 1780N |
| RF28-Y0.55KW | 3.37 | 0.55KW | 20.5kg | 1690N |
RF28減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y0.75KW | 28.78 | 0.75KW | 21.5kg | 2860N |
| RF28-Y0.75KW | 24.47 | 0.75KW | 21.5kg | 2780N |
| RF28-Y0.75KW | 22.32 | 0.75KW | 21.5kg | 2730N |
| RF28-Y0.75KW | 19.35 | 0.75KW | 21.5kg | 2650N |
| RF28-Y0.75KW | 18.08 | 0.75KW | 21.5kg | 2610N |
| RF28-Y0.75KW | 15.63 | 0.75KW | 21.5kg | 2520N |
| RF28-Y0.75KW | 13.28 | 0.75KW | 21.5kg | 2430N |
| RF28-Y0.75KW | 11.86 | 0.75KW | 21.5kg | 2360N |
| RF28-Y0.75KW | 10.13 | 0.75KW | 21.5kg | 2270N |
| RF28-Y0.75KW | 9.41 | 0.75KW | 21.5kg | 2190N |
| RF28-Y0.75KW | 8.16 | 0.75KW | 21.5kg | 2110N |
| RF28-Y0.75KW | 7.63 | 0.75KW | 21.5kg | 2070N |
| RF28-Y0.75KW | 6.59 | 0.75KW | 21.5kg | 1990N |
| RF28-Y0.75KW | 5.60 | 0.75KW | 21.5kg | 1900N |
| RF28-Y0.75KW | 5.00 | 0.75KW | 21.5kg | 1850N |
RF28減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y1.1KW | 19.35 | 1.1KW | 25.5kg | 2430N |
| RF28-Y1.1KW | 18.08 | 1.1KW | 25.5kg | 2410N |
| RF28-Y1.1KW | 15.63 | 1.1KW | 25.5kg | 2350N |
| RF28-Y1.1KW | 13.28 | 1.1KW | 25.5kg | 2280N |
| RF28-Y1.1KW | 11.86 | 1.1KW | 25.5kg | 2230N |
| RF28-Y1.1KW | 10.13 | 1.1KW | 25.5kg | 2160N |
| RF28-Y1.1KW | 9.41 | 1.1KW | 25.5kg | 2070N |
| RF28-Y1.1KW | 8.16 | 1.1KW | 25.5kg | 2000N |
| RF28-Y1.1KW | 7.63 | 1.1KW | 25.5kg | 1980N |
| RF28-Y1.1KW | 6.59 | 1.1KW | 25.5kg | 1910N |
| RF28-Y1.1KW | 5.60 | 1.1KW | 25.5kg | 1840N |
| RF28-Y1.1KW | 5.00 | 1.1KW | 25.5kg | 1780N |
| RF28-Y1.1KW | 4.27 | 1.1KW | 25.5kg | 1710N |
| RF28-Y1.1KW | 4.00 | 1.1KW | 25.5kg | 1680N |
| RF28-Y1.1KW | 3.37 | 1.1KW | 25.5kg | 1610N |
RF28減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y1.5KW | 15.63 | 1.5KW | 28.5kg | 1740N |
| RF28-Y1.5KW | 13.28 | 1.5KW | 28.5kg | 2050N |
| RF28-Y1.5KW | 11.86 | 1.5KW | 28.5kg | 2070N |
| RF28-Y1.5KW | 10.13 | 1.5KW | 28.5kg | 2020N |
| RF28-Y1.5KW | 8.16 | 1.5KW | 28.5kg | 1880N |
| RF28-Y1.5KW | 7.63 | 1.5KW | 28.5kg | 1860N |
| RF28-Y1.5KW | 6.59 | 1.5KW | 28.5kg | 1810N |
| RF28-Y1.5KW | 5.60 | 1.5KW | 28.5kg | 1750N |
| RF28-Y1.5KW | 5.00 | 1.5KW | 28.5kg | 1700N |
| RF28-Y1.5KW | 4.27 | 1.5KW | 28.5kg | 1640N |
| RF28-Y1.5KW | 4.00 | 1.5KW | 28.5kg | 1620N |
| RF28-Y1.5KW | 3.37 | 1.5KW | 28.5kg | 1550N |
RF28減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y2.2KW | 10.13 | 2.2KW | 37.5kg | 1140N |
| RF28-Y2.2KW | 6.59 | 2.2KW | 37.5kg | 1150N |
| RF28-Y2.2KW | 5.60 | 2.2KW | 37.5kg | 1410N |
| RF28-Y2.2KW | 5.00 | 2.2KW | 37.5kg | 1550N |
| RF28-Y2.2KW | 4.27 | 2.2KW | 37.5kg | 1530N |
| RF28-Y2.2KW | 4.00 | 2.2KW | 37.5kg | 1510N |
| RF28-Y2.2KW | 3.37 | 2.2KW | 37.5kg | 1460N |
RF28減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF28-Y3KW | 5.60 | 3KW | 40.5kg | 450N |
| RF28-Y3KW | 5.00 | 3KW | 40.5kg | 695N |
| RF28-Y3KW | 4.27 | 3KW | 40.5kg | 970N |
| RF28-Y3KW | 4.00 | 3KW | 40.5kg | 1070N |
| RF28-Y3KW | 3.37 | 3KW | 40.5kg | 1280N |
RF28減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R28減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
