RXF88減速機詳細信息

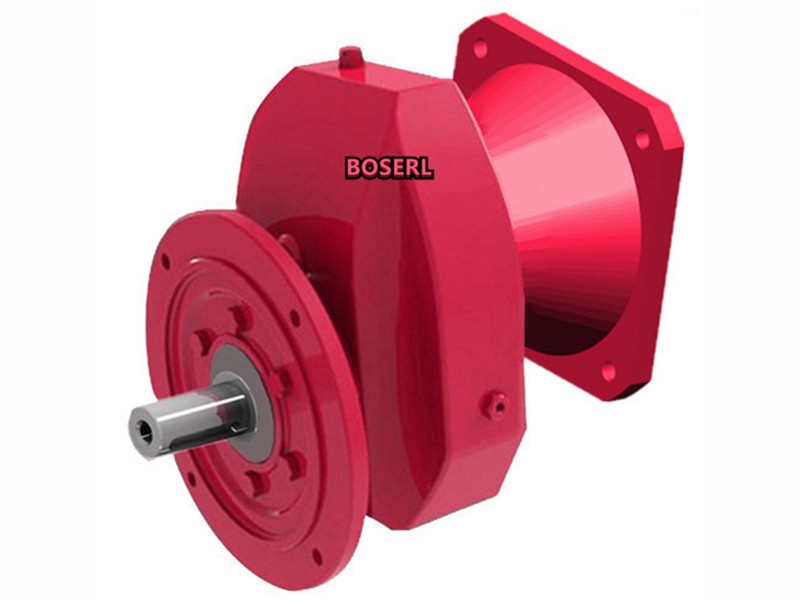

RXF88減速機
訂購熱線：13360667204
RXF88減速機傳動比計算：齒輪減速馬達
輸送設備參數：齒輪直徑175，輸送5.9噸，每分鐘移動33米
33米÷（0.175齒輪直徑X3.14）=60.05轉每分鐘
5.9噸換算成N=59000N
59000×0.0875齒輪半徑×0.06摩擦系數=309.75N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍309.75×2=619.5N.m
電機轉數1400÷輸出轉數60.05=23.31比
619.5N.m輸出扭矩÷23.31比=26.58N.m電機扭矩
26.58N.m電機扭矩?fù)Q算成功率4.22KW以上
對應的RXF88減速機選型參數：
型號：RXF88-BVPEJ5.5KW
減速比：23.31
輸出轉數：60.0轉每分鐘
輸出扭矩：650N.m
安全系數：2.90
RXF88減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）三相齒輪減速機
RXF88硬齒面斜齒輪減速機型號：
RXF87系列減速機選型參數：同軸斜齒輪減速電機
RXF87減速機配0.37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y0.37KW | 0.37KW | 3.7rpm | 960N.m | 1.6 |
| RXF87-Y0.37KW | 0.37KW | 4.2rpm | 840N.m | 1.85 |
| RXF87-Y0.37KW | 0.37KW | 4.4rpm | 800N.m | 1.95 |
| RXF87-Y0.37KW | 0.37KW | 5rpm | 705N.m | 2.2 |
| RXF87-Y0.37KW | 0.37KW | 5.8rpm | 605N.m | 2.6 |
| RXF87-Y0.37KW | 0.37KW | 6.4rpm | 555N.m | 2.8 |
RXF87減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y0.55KW | 0.55KW | 5.6rpm | 930N.m | 1.65 |
| RXF87-Y0.55KW | 0.55KW | 6.4rpm | 820N.m | 1.9 |
| RXF87-Y0.55KW | 0.55KW | 6.7rpm | 780N.m | 2 |
| RXF87-Y0.55KW | 0.55KW | 7.6rpm | 690N.m | 2.2 |
| RXF87-Y0.55KW | 0.55KW | 8.9rpm | 590N.m | 2.6 |
| RXF87-Y0.55KW | 0.55KW | 9.7rpm | 540N.m | 2.9 |
| RXF87-Y0.55KW | 0.55KW | 11rpm | 475N.m | 3.3 |
| RXF87-Y0.55KW | 0.55KW | 12rpm | 450N.m | 3.4 |
| RXF87-Y0.55KW | 0.55KW | 13rpm | 390N.m | 3.9 |
RXF87減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y0.75KW | 0.75KW | 5.8rpm | 1230N.m | 1.25 |
| RXF87-Y0.75KW | 0.75KW | 6.6rpm | 1080N.m | 1.45 |
| RXF87-Y0.75KW | 0.75KW | 7rpm | 1020N.m | 1.5 |
| RXF87-Y0.75KW | 0.75KW | 7.9rpm | 900N.m | 1.7 |
| RXF87-Y0.75KW | 0.75KW | 9.2rpm | 775N.m | 2 |
| RXF87-Y0.75KW | 0.75KW | 10rpm | 710N.m | 2.2 |
| RXF87-Y0.75KW | 0.75KW | 11rpm | 620N.m | 2.5 |
| RXF87-Y0.75KW | 0.75KW | 12rpm | 590N.m | 2.6 |
| RXF87-Y0.75KW | 0.75KW | 14rpm | 515N.m | 3 |
| RXF87-Y0.75KW | 0.75KW | 15rpm | 465N.m | 3.3 |
RXF87減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y1.1KW | 1.1KW | 6.6rpm | 1600N.m | 0.95 |
| RXF87-Y1.1KW | 1.1KW | 6.9rpm | 1520N.m | 1 |
| RXF87-Y1.1KW | 1.1KW | 7.8rpm | 1340N.m | 1.15 |
| RXF87-Y1.1KW | 1.1KW | 9.1rpm | 1140N.m | 1.35 |
| RXF87-Y1.1KW | 1.1KW | 10rpm | 1050N.m | 1.45 |
| RXF87-Y1.1KW | 1.1KW | 11rpm | 920N.m | 1.7 |
| RXF87-Y1.1KW | 1.1KW | 12rpm | 870N.m | 1.75 |
| RXF87-Y1.1KW | 1.1KW | 14rpm | 765N.m | 2 |
| RXF87-Y1.1KW | 1.1KW | 15rpm | 690N.m | 2.2 |
| RXF87-Y1.1KW | 1.1KW | 17rpm | 605N.m | 2.6 |
| RXF87-Y1.1KW | 1.1KW | 20rpm | 535N.m | 2.9 |
| RXF87-Y1.1KW | 1.1KW | 22rpm | 470N.m | 3.3 |
| RXF87-Y1.1KW | 1.1KW | 24rpm | 445N.m | 3.5 |
| RXF87-Y1.1KW | 1.1KW | 27rpm | 390N.m | 4 |
RXF87減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y1.5KW | 1.5KW | 3.7rpm | 1820N.m | 0.85 |
| RXF87-Y1.5KW | 1.5KW | 4.2rpm | 1550N.m | 1 |
| RXF87-Y1.5KW | 1.5KW | 4.4rpm | 1420N.m | 1.1 |
| RXF87-Y1.5KW | 1.5KW | 5rpm | 1250N.m | 1.25 |
| RXF87-Y1.5KW | 1.5KW | 5.8rpm | 1180N.m | 1.3 |
| RXF87-Y1.5KW | 1.5KW | 3.7rpm | 1030N.m | 1.5 |
| RXF87-Y1.5KW | 1.5KW | 4.2rpm | 930N.m | 1.65 |
| RXF87-Y1.5KW | 1.5KW | 4.4rpm | 820N.m | 1.9 |
| RXF87-Y1.5KW | 1.5KW | 5rpm | 725N.m | 2.1 |
| RXF87-Y1.5KW | 1.5KW | 5.8rpm | 635N.m | 2.4 |
| RXF87-Y1.5KW | 1.5KW | 6.4rpm | 600N.m | 2.6 |
| RXF87-Y1.5KW | 1.5KW | 6.4rpm | 525N.m | 2.9 |
| RXF87-Y1.5KW | 1.5KW | 6.4rpm | 475N.m | 3.2 |
| RXF87-Y1.5KW | 1.5KW | 6.4rpm | 415N.m | 3.7 |
| RXF87-Y1.5KW | 1.5KW | 6.4rpm | 365N.m | 4.2 |
RXF87減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y2.2KW | 2.2KW | 11rpm | 1840N.m | 0.85 |
| RXF87-Y2.2KW | 2.2KW | 12rpm | 1740N.m | 0.9 |
| RXF87-Y2.2KW | 2.2KW | 14rpm | 1520N.m | 1 |
| RXF87-Y2.2KW | 2.2KW | 15rpm | 1370N.m | 1.15 |
| RXF87-Y2.2KW | 2.2KW | 17rpm | 1200N.m | 1.3 |
| RXF87-Y2.2KW | 2.2KW | 20rpm | 1060N.m | 1.45 |
| RXF87-Y2.2KW | 2.2KW | 22rpm | 930N.m | 1.65 |
| RXF87-Y2.2KW | 2.2KW | 24rpm | 880N.m | 1.75 |
| RXF87-Y2.2KW | 2.2KW | 27rpm | 775N.m | 2 |
| RXF87-Y2.2KW | 2.2KW | 30rpm | 700N.m | 2.2 |
| RXF87-Y2.2KW | 2.2KW | 34rpm | 615N.m | 2.5 |
| RXF87-Y2.2KW | 2.2KW | 39rpm | 540N.m | 2.8 |
| RXF87-Y2.2KW | 2.2KW | 44rpm | 480N.m | 3.2 |
| RXF87-Y2.2KW | 2.2KW | 41rpm | 505N.m | 3 |
| RXF87-Y2.2KW | 2.2KW | 45rpm | 460N.m | 3.4 |
| RXF87-Y2.2KW | 2.2KW | 51rpm | 410N.m | 3.8 |
| RXF87-Y2.2KW | 2.2KW | 61rpm | 345N.m | 4.5 |
| RXF87-Y2.2KW | 2.2KW | 66rpm | 315N.m | 4.7 |
RXF87減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y3KW | 3KW | 16rpm | 1830N.m | 0.85 |
| RXF87-Y3KW | 3KW | 18rpm | 1610N.m | 0.95 |
| RXF87-Y3KW | 3KW | 20rpm | 1420N.m | 1.1 |
| RXF87-Y3KW | 3KW | 23rpm | 1250N.m | 1.25 |
| RXF87-Y3KW | 3KW | 24rpm | 1180N.m | 1.3 |
| RXF87-Y3KW | 3KW | 28rpm | 1030N.m | 1.5 |
| RXF87-Y3KW | 3KW | 31rpm | 930N.m | 1.65 |
| RXF87-Y3KW | 3KW | 35rpm | 820N.m | 1.9 |
| RXF87-Y3KW | 3KW | 40rpm | 725N.m | 2.1 |
| RXF87-Y3KW | 3KW | 45rpm | 640N.m | 2.4 |
| RXF87-Y3KW | 3KW | 52rpm | 545N.m | 2.7 |
| RXF87-Y3KW | 3KW | 42rpm | 675N.m | 2.2 |
| RXF87-Y3KW | 3KW | 46rpm | 615N.m | 2.5 |
| RXF87-Y3KW | 3KW | 52rpm | 545N.m | 2.8 |
| RXF87-Y3KW | 3KW | 62rpm | 460N.m | 3.4 |
| RXF87-Y3KW | 3KW | 68rpm | 420N.m | 3.5 |
| RXF87-Y3KW | 3KW | 76rpm | 375N.m | 3.8 |
| RXF87-Y3KW | 3KW | 85rpm | 335N.m | 4.1 |
| RXF87-Y3KW | 3KW | 95rpm | 300N.m | 4.4 |
RXF87減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y4KW | 4KW | 23rpm | 1660N.m | 0.95 |
| RXF87-Y4KW | 4KW | 24rpm | 1570N.m | 1 |
| RXF87-Y4KW | 4KW | 28rpm | 1380N.m | 1.1 |
| RXF87-Y4KW | 4KW | 31rpm | 1240N.m | 1.25 |
| RXF87-Y4KW | 4KW | 35rpm | 1090N.m | 1.4 |
| RXF87-Y4KW | 4KW | 40rpm | 960N.m | 1.6 |
| RXF87-Y4KW | 4KW | 45rpm | 850N.m | 1.8 |
| RXF87-Y4KW | 4KW | 52rpm | 725N.m | 2.1 |
| RXF87-Y4KW | 4KW | 42rpm | 900N.m | 1.65 |
| RXF87-Y4KW | 4KW | 46rpm | 820N.m | 1.9 |
| RXF87-Y4KW | 4KW | 52rpm | 725N.m | 2.1 |
| RXF87-Y4KW | 4KW | 62rpm | 610N.m | 2.5 |
| RXF87-Y4KW | 4KW | 68rpm | 560N.m | 2.7 |
| RXF87-Y4KW | 4KW | 76rpm | 495N.m | 2.9 |
| RXF87-Y4KW | 4KW | 85rpm | 445N.m | 3.1 |
| RXF87-Y4KW | 4KW | 95rpm | 400N.m | 3.3 |
| RXF87-Y4KW | 4KW | 110rpm | 345N.m | 3.7 |
| RXF87-Y4KW | 4KW | 122rpm | 310N.m | 3.9 |
RXF87減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y5.5KW | 5.5KW | 31rpm | 1710N.m | 0.9 |
| RXF87-Y5.5KW | 5.5KW | 35rpm | 1500N.m | 1.05 |
| RXF87-Y5.5KW | 5.5KW | 40rpm | 1320N.m | 1.15 |
| RXF87-Y5.5KW | 5.5KW | 45rpm | 1170N.m | 1.3 |
| RXF87-Y5.5KW | 5.5KW | 52rpm | 1000N.m | 1.5 |
| RXF87-Y5.5KW | 5.5KW | 52rpm | 1000N.m | 1.55 |
| RXF87-Y5.5KW | 5.5KW | 62rpm | 840N.m | 1.85 |
| RXF87-Y5.5KW | 5.5KW | 68rpm | 775N.m | 1.95 |
| RXF87-Y5.5KW | 5.5KW | 76rpm | 685N.m | 2.1 |
| RXF87-Y5.5KW | 5.5KW | 85rpm | 615N.m | 2.3 |
| RXF87-Y5.5KW | 5.5KW | 95rpm | 550N.m | 2.4 |
| RXF87-Y5.5KW | 5.5KW | 109rpm | 480N.m | 2.7 |
| RXF87-Y5.5KW | 5.5KW | 122rpm | 430N.m | 2.9 |
| RXF87-Y5.5KW | 5.5KW | 147rpm | 355N.m | 3.3 |
| RXF87-Y5.5KW | 5.5KW | 159rpm | 330N.m | 3.7 |
| RXF87-Y5.5KW | 5.5KW | 177rpm | 295N.m | 3.9 |
| RXF87-Y5.5KW | 5.5KW | 204rpm | 255N.m | 4.2 |
RXF87減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y7.5KW | 7.5KW | 40rpm | 1790N.m | 0.85 |
| RXF87-Y7.5KW | 7.5KW | 45rpm | 1590N.m | 0.95 |
| RXF87-Y7.5KW | 7.5KW | 53rpm | 1350N.m | 1.1 |
| RXF87-Y7.5KW | 7.5KW | 53rpm | 1350N.m | 1.15 |
| RXF87-Y7.5KW | 7.5KW | 63rpm | 1140N.m | 1.35 |
| RXF87-Y7.5KW | 7.5KW | 68rpm | 1040N.m | 1.45 |
| RXF87-Y7.5KW | 7.5KW | 77rpm | 930N.m | 1.55 |
| RXF87-Y7.5KW | 7.5KW | 86rpm | 830N.m | 1.65 |
| RXF87-Y7.5KW | 7.5KW | 96rpm | 745N.m | 1.8 |
| RXF87-Y7.5KW | 7.5KW | 110rpm | 645N.m | 1.95 |
| RXF87-Y7.5KW | 7.5KW | 123rpm | 580N.m | 2.1 |
| RXF87-Y7.5KW | 7.5KW | 148rpm | 480N.m | 2.4 |
| RXF87-Y7.5KW | 7.5KW | 161rpm | 445N.m | 2.7 |
| RXF87-Y7.5KW | 7.5KW | 179rpm | 400N.m | 2.9 |
| RXF87-Y7.5KW | 7.5KW | 206rpm | 345N.m | 3.1 |
| RXF87-Y7.5KW | 7.5KW | 230rpm | 310N.m | 3.3 |
| RXF87-Y7.5KW | 7.5KW | 277rpm | 255N.m | 3.5 |
RXF87減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y11KW | 11KW | 69rpm | 1530N.m | 1 |
| RXF87-Y11KW | 11KW | 77rpm | 1360N.m | 1.05 |
| RXF87-Y11KW | 11KW | 86rpm | 1210N.m | 1.15 |
| RXF87-Y11KW | 11KW | 96rpm | 1090N.m | 1.25 |
| RXF87-Y11KW | 11KW | 111rpm | 940N.m | 1.35 |
| RXF87-Y11KW | 11KW | 124rpm | 840N.m | 1.45 |
| RXF87-Y11KW | 11KW | 149rpm | 705N.m | 1.65 |
| RXF87-Y11KW | 11KW | 161rpm | 650N.m | 1.85 |
| RXF87-Y11KW | 11KW | 179rpm | 585N.m | 2 |
| RXF87-Y11KW | 11KW | 207rpm | 505N.m | 2.1 |
| RXF87-Y11KW | 11KW | 231rpm | 455N.m | 2.2 |
| RXF87-Y11KW | 11KW | 278rpm | 375N.m | 2.4 |
RXF87減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y15KW | 15KW | 86rpm | 1660N.m | 0.85 |
| RXF87-Y15KW | 15KW | 95rpm | 1500N.m | 0.9 |
| RXF87-Y15KW | 15KW | 110rpm | 1300N.m | 1 |
| RXF87-Y15KW | 15KW | 123rpm | 1160N.m | 1.05 |
| RXF87-Y15KW | 15KW | 148rpm | 960N.m | 1.2 |
| RXF87-Y15KW | 15KW | 160rpm | 890N.m | 1.35 |
| RXF87-Y15KW | 15KW | 178rpm | 800N.m | 1.45 |
| RXF87-Y15KW | 15KW | 205rpm | 695N.m | 1.55 |
| RXF87-Y15KW | 15KW | 229rpm | 620N.m | 1.65 |
| RXF87-Y15KW | 15KW | 276rpm | 515N.m | 1.75 |
RXF87減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y18.5KW | 18.5KW | 110rpm | 1600N.m | 0.8 |
| RXF87-Y18.5KW | 18.5KW | 123rpm | 1430N.m | 0.85 |
| RXF87-Y18.5KW | 18.5KW | 148rpm | 1190N.m | 1 |
| RXF87-Y18.5KW | 18.5KW | 160rpm | 1100N.m | 1.1 |
| RXF87-Y18.5KW | 18.5KW | 178rpm | 990N.m | 1.15 |
| RXF87-Y18.5KW | 18.5KW | 205rpm | 860N.m | 1.25 |
| RXF87-Y18.5KW | 18.5KW | 229rpm | 770N.m | 1.3 |
| RXF87-Y18.5KW | 18.5KW | 276rpm | 635N.m | 1.4 |
RXF87減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF87-Y22KW | 22KW | 149rpm | 1410N.m | 0.85 |
| RXF87-Y22KW | 22KW | 161rpm | 1300N.m | 0.95 |
| RXF87-Y22KW | 22KW | 179rpm | 1170N.m | 1 |
| RXF87-Y22KW | 22KW | 207rpm | 1010N.m | 1.05 |
| RXF87-Y22KW | 22KW | 231rpm | 900N.m | 1.1 |
| RXF87-Y22KW | 22KW | 278rpm | 750N.m | 1.2 |
RXF87減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R88減速機
關鍵詞:GRXF向減速電機一體式_硬齒面減速機配電機_RXF系列減速器_RXF系列減速機_GRXF系列減速機_齒輪減速器_硬齒面齒輪減速機_三相齒輪減速電機_RXF型減速機_三相齒輪減速機
RXF系列齒輪減速馬達型號：RXF58減速機,RXF68減速機,RXF78減速機,RXF88減速機,RXF98減速機,RXF108減速機
RXF系列同軸斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RXF88減速機 RXF87硬齒面斜齒輪減速機 RXF87系列減速機 RXF87減速機傳動比 RXF87減速機選型參數 RXF87減速機CAD三維圖
