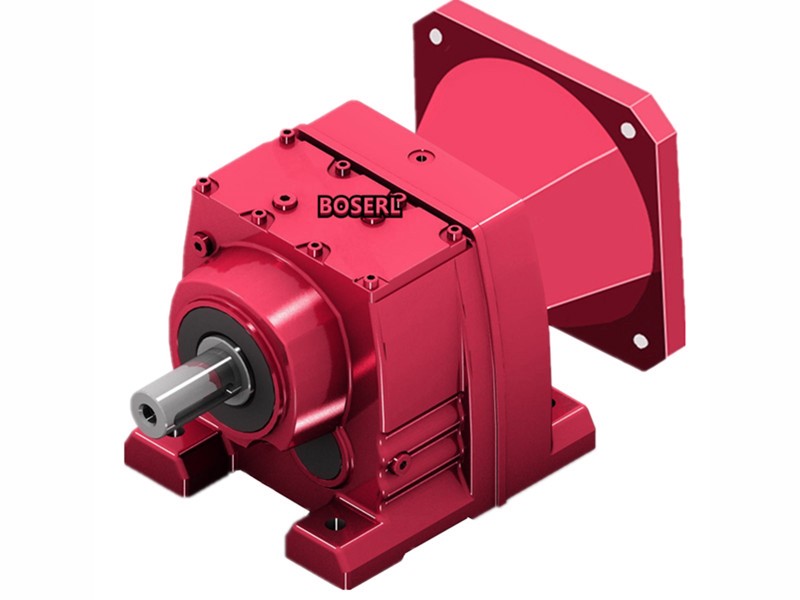

R168減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑400，負載50噸，一分鐘走12米

12米÷（0.4輪子直徑×3.14）=9.55轉每分鐘

50噸換算成N=500000N

500000×0.2輪子半徑×0.06摩擦系數=6000N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍6000×2=12000N.m

電機轉數1400÷輸出轉數9.55=146.59比

12000N.m輸出扭矩÷146.59比=81.86N.m電機扭矩

81.86N.m電機扭矩?fù)Q算成功率13KW以上

對應的R168減速機選型參數：

型號：R168-B15KW

減速比：153.07

輸出轉數：9.6轉每分鐘

輸出扭矩：14900N.m

安全系數：1.20

R168減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

R168臥式硬齒面斜齒輪減速機型號：

R167FDM160M4,R167FDM180L4,R167FDM180LC4,R167FDM180M4,R167FDM180S4,R167FDM200L4,R167FDM225M4,R167FDM225S4,R167FDM250M4,R167FDM280M4,R167FDM280S4,R167FDM315H4,R167FDM315K4,R167FDM315L4,R167FDM315M4,R167FDM315M4A,R167FDM315M4B,R167FDM315S4,R167FDR160M4,R167FDR180L4,R167FDR180LC4,R167FDR180M4,R167FDR180S4,R167FDR200L4,R167FDR225M4,R167FDR225S4,R167FDR250M4,R167FDR280M4,R167FDR280S4,R167FDR315H4,R167FDR315K4,R167FDR315L4,R167FDR315M4,R167FDR315M4A,R167FDR315M4B,R167FDR315S4,R167FDRE160M4,R167FDRE180L4,R167FDRE180LC4,R167FDRE180M4,R167FDRE180S4,R167FDRE200L4,R167FDRE225M4,R167FDRE225S4,R167FDRE250M4,R167FDRE280M4,R167FDRE280S4,R167FDRE315H4,R167FDRE315K4,R167FDRE315L4,R167FDRE315M4,R167FDRE315M4A,R167FDRE315M4B,R167FDRE315S4,R167FDRN160M4,R167FDRN180L4,R167FDRN180LC4,R167FDRN180M4,R167FDRN180S4,R167FDRN200L4,R167FDRN225M4,R167FDRN225S4,R167FDRN250M4,R167FDRN280M4,R167FDRN280S4,R167FDRN315H4,R167FDRN315K4,R167FDRN315L4,R167FDRN315M4,R167FDRN315M4A,R167FDRN315M4B,R167FDRN315S4,R167FDRS160M4,R167FDRS180L4,R167FDRS180LC4,R167FDRS180M4,R167FDRS180S4,R167FDRS200L4,R167FDRS225M4,R167FDRS225S4,R167FDRS250M4,R167FDRS280M4,R167FDRS280S4,R167FDRS315H4,R167FDRS315K4,R167FDRS315L4,R167FDRS315M4,R167FDRS315M4A,R167FDRS315M4B,R167FDRS315S4,R167FDT160M4,R167FDT180L4,R167FDT180LC4,R167FDT180M4,R167FDT180S4,R167FDT200L4,R167FDT225M4,R167FDT225S4,R167FDT250M4,R167FDT280M4,R167FDT280S4,R167FDT315H4,R167FDT315K4,R167FDT315L4,R167FDT315M4,R167FDT315M4A,R167FDT315M4B,R167FDT315S4,R167FDV160M4,R167FDV180L4,R167FDV180LC4,R167FDV180M4,R167FDV180S4,R167FDV200L4,R167FDV225M4,R167FDV225S4,R167FDV250M4,R167FDV280M4,R167FDV280S4,R167FDV315H4,R167FDV315K4,R167FDV315L4,R167FDV315M4,R167FDV315M4A,R167FDV315M4B,R167FDV315S4,R167FDVE160M4,R167FDVE180L4,R167FDVE180LC4,R167FDVE180M4,R167FDVE180S4,R167FDVE200L4,R167FDVE225M4,R167FDVE225S4,R167FDVE250M4,R167FDVE280M4,R167FDVE280S4,R167FDVE315H4,R167FDVE315K4,R167FDVE315L4,R167FDVE315M4,R167FDVE315M4A,R167FDVE315M4B,R167FDVE315S4,R167F-Y110KW,R167F-Y11KW,R167F-Y132KW,R167F-Y15KW,R167F-Y160M4,R167F-Y18.5KW,R167F-Y180M4,R167F-Y200M4,R167F-Y225M4,R167F-Y22KW,R167F-Y250M4,R167F-Y280M4,R167F-Y30KW,R167F-Y315M4,R167F-Y37KW,R167F-Y45KW,R167F-Y55KW,R167F-Y75KW,R167F-Y90KW,R167F-YEJ110KW,R167F-YEJ11KW,R167F-YEJ132KW,R167F-YEJ15KW,R167F-YEJ160M4,R167F-YEJ18.5KW,R167F-YEJ180M4,R167F-YEJ200M4,R167F-YEJ225M4,R167F-YEJ22KW,R167F-YEJ250M4,R167F-YEJ280M4,R167F-YEJ30KW,R167F-YEJ315M4,R167F-YEJ37KW,R167F-YEJ45KW,R167F-YEJ55KW,R167F-YEJ75KW,R167F-YEJ90KW,R167F-YVP110KW,R167F-YVP11KW,R167F-YVP132KW,R167F-YVP15KW,R167F-YVP160M4,R167F-YVP18.5KW,R167F-YVP180M4,R167F-YVP200M4,R167F-YVP225M4,R167F-YVP22KW,R167F-YVP250M4,R167F-YVP280M4,R167F-YVP30KW,R167F-YVP315M4,R167F-YVP37KW,R167F-YVP45KW,R167F-YVP55KW,R167F-YVP75KW,R167F-YVP90KW,R167F-YVPEJ110KW,R167F-YVPEJ11KW,R167F-YVPEJ132KW,R167F-YVPEJ15KW,R167F-YVPEJ160M4,R167F-YVPEJ18.5KW,R167F-YVPEJ180M4,R167F-YVPEJ200M4,R167F-YVPEJ225M4,R167F-YVPEJ22KW,R167F-YVPEJ250M4,R167F-YVPEJ280M4,R167F-YVPEJ30KW,R167F-YVPEJ315M4,R167F-YVPEJ37KW,R167F-YVPEJ45KW,R167F-YVPEJ55KW,R167F-YVPEJ75KW,R167F-YVPEJ90KW。

R167系列減速機參數大全：同軸斜齒輪減速電機

R167F減速機配11KW電機參數

R167F減速機配15KW電機參數

R167F減速機配18.5KW電機參數

R167F減速機配22KW電機參數

R167F減速機配30KW電機參數

R167F減速機配37KW電機參數

R167F減速機配45KW電機參數

R167F減速機配55KW電機參數

R167F減速機配75KW電機參數

R167F減速機配90KW電機參數

R167F減速機配110KW電機參數

R167F減速機配132KW電機參數

R168減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R148減速機
