KF88減速機詳細信息

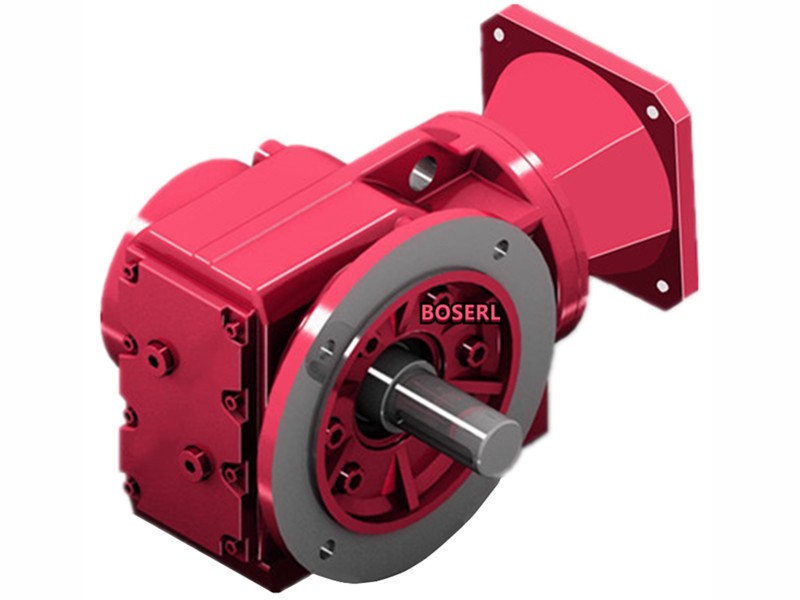

KF88減速機
訂購熱線：13360667204
KF88減速機選型計算：齒輪減速馬達
泥狀攪拌罐參數：攪動0.69噸泥狀物料，每分鐘攪動107圈，攪動葉輪直徑98
電機轉數1400÷107圈（輸出轉速）=減速比14
攪拌0.69噸泥狀物料=5880N
5880N×0.049葉輪半徑=294×2攪拌水狀物料扭矩放大兩倍=588N.m
588N.m÷14減速比=42N.m電機扭矩
42N.m電機扭矩換算成功率6.67KW以上
對應的KF88減速機選型參數：
型號：KF88-BEJ7.5KW
減速比：14.45
輸出轉數：102轉每分鐘
輸出扭矩：700N.m
安全系數：3
KF88減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機
KF88傘齒輪減速機型號：
KF88系列減速機參數大全：直角減速機
KF88減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y0.75KW | 197.37 | 0.75KW | 105Kg | 28800N |
| K87Y0.75KW | 174.19 | 0.75KW | 105Kg | 28800N |
| K87Y0.75KW | 164.34 | 0.75KW | 105Kg | 28900N |
| K87Y0.75KW | 147.32 | 0.75KW | 105Kg | 28900N |
KF88減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y1.1KW | 174.19 | 1.1KW | 105Kg | 28600N |
| K87Y1.1KW | 163.34 | 1.1KW | 105Kg | 28700N |
| K87Y1.1KW | 147.32 | 1.1KW | 105Kg | 28700N |
| K87Y1.1KW | 126.91 | 1.1KW | 105Kg | 28800N |
| K87Y1.1KW | 115.82 | 1.1KW | 105Kg | 28900N |
KF88減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y1.5KW | 174.19 | 1.5KW | 110Kg | 28300N |
| K87Y1.5KW | 164.34 | 1.5KW | 110Kg | 28300N |
| K87Y1.5KW | 147.32 | 1.5KW | 110Kg | 28500N |
| K87Y1.5KW | 126.91 | 1.5KW | 110Kg | 28600N |
| K87Y1.5KW | 115.82 | 1.5KW | 110Kg | 28700N |
| K87Y1.5KW | 102.71 | 1.5KW | 110Kg | 28800N |
| K87Y1.5KW | 86.34 | 1.5KW | 110Kg | 28800N |
KF88減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y2.2KW | 147.32 | 2.2KW | 110Kg | 27800N |
| K87Y2.2KW | 126.91 | 2.2KW | 110Kg | 28100N |
| K87Y2.2KW | 115.82 | 2.2KW | 110Kg | 28300N |
| K87Y2.2KW | 102.71 | 2.2KW | 110Kg | 28400N |
| K87Y2.2KW | 86.34 | 2.2KW | 110Kg | 28600N |
| K87Y2.2KW | 79.34 | 2.2KW | 110Kg | 28700N |
| K87Y2.2KW | 70.46 | 2.2KW | 110Kg | 28800N |
| K87Y2.2KW | 63 | 2.2KW | 110Kg | 28800N |
KF88減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y3KW | 147.32 | 3KW | 115Kg | 26900N |
| K87Y3KW | 126.91 | 3KW | 115Kg | 27400N |
| K87Y3KW | 115.82 | 3KW | 115Kg | 27700N |
| K87Y3KW | 102.71 | 3KW | 115Kg | 28000N |
| K87Y3KW | 86.34 | 3KW | 115Kg | 28300N |
| K87Y3KW | 79.34 | 3KW | 115Kg | 28400N |
| K87Y3KW | 70.46 | 3KW | 115Kg | 28500N |
| K87Y3KW | 63 | 3KW | 115Kg | 28600N |
| K87Y3KW | 56.64 | 3KW | 115Kg | 28700N |
| K87Y3KW | 49.16 | 3KW | 115Kg | 28800N |
| K87Y3KW | 44.02 | 3KW | 115Kg | 28800N |
| K87Y3KW | 36.52 | 3KW | 115Kg | 28400N |
KF88減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y4KW | 115.82 | 4KW | 130Kg | 26800N |
| K87Y4KW | 102.71 | 4KW | 130Kg | 27200N |
| K87Y4KW | 86.34 | 4KW | 130Kg | 27800N |
| K87Y4KW | 79.34 | 4KW | 130Kg | 27900N |
| K87Y4KW | 70.46 | 4KW | 130Kg | 28200N |
| K87Y4KW | 63 | 4KW | 130Kg | 28300N |
| K87Y4KW | 56.64 | 4KW | 130Kg | 28500N |
| K87Y4KW | 49.16 | 4KW | 130Kg | 28600N |
| K87Y4KW | 44.02 | 4KW | 130Kg | 28300N |
| K87Y4KW | 36.52 | 4KW | 130Kg | 27300N |
KF88減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y5.5KW | 86.34 | 5.5KW | 135Kg | 26700N |
| K87Y5.5KW | 79.34 | 5.5KW | 135Kg | 27000N |
| K87Y5.5KW | 70.46 | 5.5KW | 135Kg | 27500N |
| K87Y5.5KW | 63 | 5.5KW | 135Kg | 27400N |
| K87Y5.5KW | 56.64 | 5.5KW | 135Kg | 27200N |
| K87Y5.5KW | 49.16 | 5.5KW | 135Kg | 26800N |
| K87Y5.5KW | 44.02 | 5.5KW | 135Kg | 26500N |
| K87Y5.5KW | 36.52 | 5.5KW | 135Kg | 25800N |
| K87Y5.5KW | 31.39 | 5.5KW | 135Kg | 25200N |
| K87Y5.5KW | 27.88 | 5.5KW | 135Kg | 24600N |
KF88減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y7.5KW | 63 | 7.5KW | 145Kg | 24100N |
| K87Y7.5KW | 56.64 | 7.5KW | 145Kg | 24200N |
| K87Y7.5KW | 49.16 | 7.5KW | 145Kg | 24200N |
| K87Y7.5KW | 44.02 | 7.5KW | 145Kg | 24100N |
| K87Y7.5KW | 36.52 | 7.5KW | 145Kg | 23800N |
| K87Y7.5KW | 31.39 | 7.5KW | 145Kg | 23500N |
| K87Y7.5KW | 27.88 | 7.5KW | 145Kg | 23100N |
| K87Y7.5KW | 24.92 | 7.5KW | 145Kg | 22800N |
| K87Y7.5KW | 22.41 | 7.5KW | 145Kg | 22400N |
| K87Y7.5KW | 19.45 | 7.5KW | 145Kg | 21900N |
| K87Y7.5KW | 17.42 | 7.5KW | 145Kg | 21500N |
| K87Y7.5KW | 16 | 7.5KW | 145Kg | 20600N |
| K87Y7.5KW | 14.45 | 7.5KW | 145Kg | 20700N |
KF88減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y11KW | 44.02 | 11KW | 170Kg | 20100N |
| K87Y11KW | 36.52 | 11KW | 170Kg | 20500N |
| K87Y11KW | 31.39 | 11KW | 170Kg | 20600N |
| K87Y11KW | 27.88 | 11KW | 170Kg | 20600N |
| K87Y11KW | 24.92 | 11KW | 170Kg | 20500N |
| K87Y11KW | 22.41 | 11KW | 170Kg | 20300N |
| K87Y11KW | 19.45 | 11KW | 170Kg | 20100N |
| K87Y11KW | 17.42 | 11KW | 170Kg | 19800N |
| K87Y11KW | 16 | 11KW | 170Kg | 18800N |
| K87Y11KW | 14.45 | 11KW | 170Kg | 19300N |
| K87Y11KW | 12.56 | 11KW | 170Kg | 18900N |
| K87Y11KW | 11.17 | 11KW | 170Kg | 18000N |
| K87Y11KW | 10 | 11KW | 170Kg | 17600N |
| K87Y11KW | 8.29 | 11KW | 170Kg | 17100N |
| K87Y11KW | 7.21 | 11KW | 170Kg | 16600N |
KF88減速機配15KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y15KW | 31.39 | 15KW | 205Kg | 17300N |
| K87Y15KW | 27.88 | 15KW | 205Kg | 17600N |
| K87Y15KW | 24.92 | 15KW | 205Kg | 17800N |
| K87Y15KW | 22.41 | 15KW | 205Kg | 18000N |
| K87Y15KW | 19.45 | 15KW | 205Kg | 18000N |
| K87Y15KW | 17.42 | 15KW | 205Kg | 18000N |
| K87Y15KW | 16 | 15KW | 205Kg | 16800N |
| K87Y15KW | 14.45 | 15KW | 205Kg | 17800N |
| K87Y15KW | 12.56 | 15KW | 205Kg | 17600N |
| K87Y15KW | 11.17 | 15KW | 205Kg | 16600N |
| K87Y15KW | 10 | 15KW | 205Kg | 16400N |
| K87Y15KW | 8.29 | 15KW | 205Kg | 16000N |
| K87Y15KW | 7.21 | 15KW | 205Kg | 15700N |
KF88減速機配18.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y18.5KW | 24.92 | 18.5KW | 220Kg | 15500N |
| K87Y18.5KW | 22.41 | 18.5KW | 220Kg | 15900N |
| K87Y18.5KW | 19.45 | 18.5KW | 220Kg | 16200N |
| K87Y18.5KW | 17.42 | 18.5KW | 220Kg | 16400N |
| K87Y18.5KW | 14.45 | 18.5KW | 220Kg | 16500N |
| K87Y18.5KW | 12.56 | 18.5KW | 220Kg | 16400N |
| K87Y18.5KW | 11.17 | 18.5KW | 220Kg | 15400N |
| K87Y18.5KW | 10 | 18.5KW | 220Kg | 15300N |
| K87Y18.5KW | 8.29 | 18.5KW | 220Kg | 15200N |
| K87Y18.5KW | 7.21 | 18.5KW | 220Kg | 15000N |
KF88減速機配22KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K87Y22KW | 19.45 | 22KW | 240Kg | 14400N |
| K87Y22KW | 17.42 | 22KW | 240Kg | 14800N |
| K87Y22KW | 14.45 | 22KW | 240Kg | 15100N |
| K87Y22KW | 12.56 | 22KW | 240Kg | 15300N |
| K87Y22KW | 11.17 | 22KW | 240Kg | 14200N |
| K87Y22KW | 10 | 22KW | 240Kg | 14200N |
| K87Y22KW | 8.29 | 22KW | 240Kg | 14300N |
| K87Y22KW | 7.21 | 22KW | 240Kg | 14200N |
KF88減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K88減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KF88減速機 KF87傘齒輪減速機 KF87系列減速機 KF87減速機傳動比 KF87減速機選型參數 KF87減速機CAD三維圖
