R148減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑350，負載30噸，一分鐘走11米

11米÷（0.35輪子直徑×3.14）=10轉每分鐘

30噸換算成N=300000N

300000×0.175輪子半徑×0.06摩擦系數=3150N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍3150×2=6300N.m

電機轉數1400÷輸出轉數10=140比

6300N.m輸出扭矩÷140比=45N.m電機扭矩

45N.m電機扭矩換算成功率7.14KW以上

對應的R148減速機選型參數：

型號：R148-B11KW

減速比：146.91

輸出轉數：10轉每分鐘

輸出扭矩：10400N.m

安全系數：1.25

R148減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

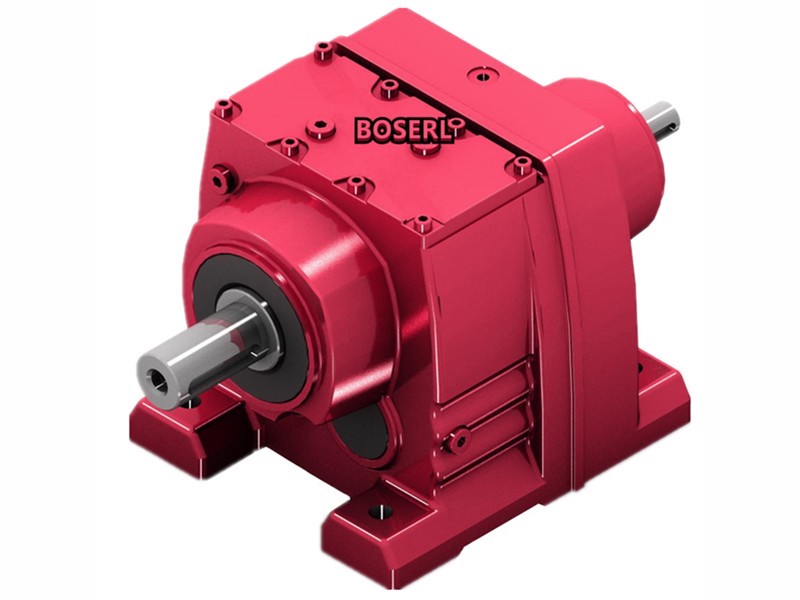

R148臥式硬齒面斜齒輪減速機型號：

R147FDM132L4,R147FDM132M4,R147FDM132MC4,R147FDM132ML4,R147FDM132S4,R147FDM160L4,R147FDM160M4,R147FDM160MC4,R147FDM160S4,R147FDM180L4,R147FDM180LC4,R147FDM180M4,R147FDM180S4,R147FDM200L4,R147FDM225M4,R147FDM225S4,R147FDM250M4,R147FDM280M4,R147FDM280S4,R147FDR132L4,R147FDR132M4,R147FDR132MC4,R147FDR132ML4,R147FDR132S4,R147FDR160L4,R147FDR160M4,R147FDR160MC4,R147FDR160S4,R147FDR180L4,R147FDR180LC4,R147FDR180M4,R147FDR180S4,R147FDR200L4,R147FDR225M4,R147FDR225S4,R147FDR250M4,R147FDR280M4,R147FDR280S4,R147FDRE132L4,R147FDRE132M4,R147FDRE132MC4,R147FDRE132ML4,R147FDRE132S4,R147FDRE160L4,R147FDRE160M4,R147FDRE160MC4,R147FDRE160S4,R147FDRE180L4,R147FDRE180LC4,R147FDRE180M4,R147FDRE180S4,R147FDRE200L4,R147FDRE225M4,R147FDRE225S4,R147FDRE250M4,R147FDRE280M4,R147FDRE280S4,R147FDRN132L4,R147FDRN132M4,R147FDRN132MC4,R147FDRN132ML4,R147FDRN132S4,R147FDRN160L4,R147FDRN160M4,R147FDRN160MC4,R147FDRN160S4,R147FDRN180L4,R147FDRN180LC4,R147FDRN180M4,R147FDRN180S4,R147FDRN200L4,R147FDRN225M4,R147FDRN225S4,R147FDRN250M4,R147FDRN280M4,R147FDRN280S4,R147FDRS132L4,R147FDRS132M4,R147FDRS132MC4,R147FDRS132ML4,R147FDRS132S4,R147FDRS160L4,R147FDRS160M4,R147FDRS160MC4,R147FDRS160S4,R147FDRS180L4,R147FDRS180LC4,R147FDRS180M4,R147FDRS180S4,R147FDRS200L4,R147FDRS225M4,R147FDRS225S4,R147FDRS250M4,R147FDRS280M4,R147FDRS280S4,R147FDT132L4,R147FDT132M4,R147FDT132MC4,R147FDT132ML4,R147FDT132S4,R147FDT160L4,R147FDT160M4,R147FDT160MC4,R147FDT160S4,R147FDT180L4,R147FDT180LC4,R147FDT180M4,R147FDT180S4,R147FDT200L4,R147FDT225M4,R147FDT225S4,R147FDT250M4,R147FDT280M4,R147FDT280S4,R147FDV132L4,R147FDV132M4,R147FDV132MC4,R147FDV132ML4,R147FDV132S4,R147FDV160L4,R147FDV160M4,R147FDV160MC4,R147FDV160S4,R147FDV180L4,R147FDV180LC4,R147FDV180M4,R147FDV180S4,R147FDV200L4,R147FDV225M4,R147FDV225S4,R147FDV250M4,R147FDV280M4,R147FDV280S4,R147FDVE132L4,R147FDVE132M4,R147FDVE132MC4,R147FDVE132ML4,R147FDVE132S4,R147FDVE160L4,R147FDVE160M4,R147FDVE160MC4,R147FDVE160S4,R147FDVE180L4,R147FDVE180LC4,R147FDVE180M4,R147FDVE180S4,R147FDVE200L4,R147FDVE225M4,R147FDVE225S4,R147FDVE250M4,R147FDVE280M4,R147FDVE280S4,R147F-Y11KW,R147F-Y132M4,R147F-Y15KW,R147F-Y160M4,R147F-Y18.5KW,R147F-Y180M4,R147F-Y200M4,R147F-Y225M4,R147F-Y22KW,R147F-Y250M4,R147F-Y280M4,R147F-Y30KW,R147F-Y37KW,R147F-Y45KW,R147F-Y55KW,R147F-Y75KW,R147F-Y90KW,R147F-YEJ11KW,R147F-YEJ132M4,R147F-YEJ15KW,R147F-YEJ160M4,R147F-YEJ18.5KW,R147F-YEJ180M4,R147F-YEJ200M4,R147F-YEJ225M4,R147F-YEJ22KW,R147F-YEJ250M4,R147F-YEJ280M4,R147F-YEJ30KW,R147F-YEJ37KW,R147F-YEJ45KW,R147F-YEJ55KW,R147F-YEJ75KW,R147F-YEJ90KW,R147F-YVP11KW,R147F-YVP132M4,R147F-YVP15KW,R147F-YVP160M4,R147F-YVP18.5KW,R147F-YVP180M4,R147F-YVP200M4,R147F-YVP225M4,R147F-YVP22KW,R147F-YVP250M4,R147F-YVP280M4,R147F-YVP30KW,R147F-YVP37KW,R147F-YVP45KW,R147F-YVP55KW,R147F-YVP75KW,R147F-YVP90KW,R147F-YVPEJ11KW,R147F-YVPEJ132M4,R147F-YVPEJ15KW,R147F-YVPEJ160M4,R147F-YVPEJ18.5KW,R147F-YVPEJ180M4,R147F-YVPEJ200M4,R147F-YVPEJ225M4,R147F-YVPEJ22KW,R147F-YVPEJ250M4,R147F-YVPEJ280M4,R147F-YVPEJ30KW,R147F-YVPEJ37KW,R147F-YVPEJ45KW,R147F-YVPEJ55KW,R147F-YVPEJ75KW,R147F-YVPEJ90KW。

R147系列減速機參數大全：同軸斜齒輪減速電機

R147F減速機配11KW電機參數

R147F減速機配15KW電機參數

R147F減速機配18.5KW電機參數

R147F減速機配22KW電機參數

R147F減速機配30KW電機參數

R147F減速機配37KW電機參數

R147F減速機配45KW電機參數

R147F減速機配55KW電機參數

R147F減速機配75KW電機參數

R147F減速機配90KW電機參數

R148減速機生產工廠展示：看廠請聯(lián)系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R138減速機
